Multilayer PCB Manufacturing for Complex Designs


We specialize in highly complex Multilayer Boards (MLBs).

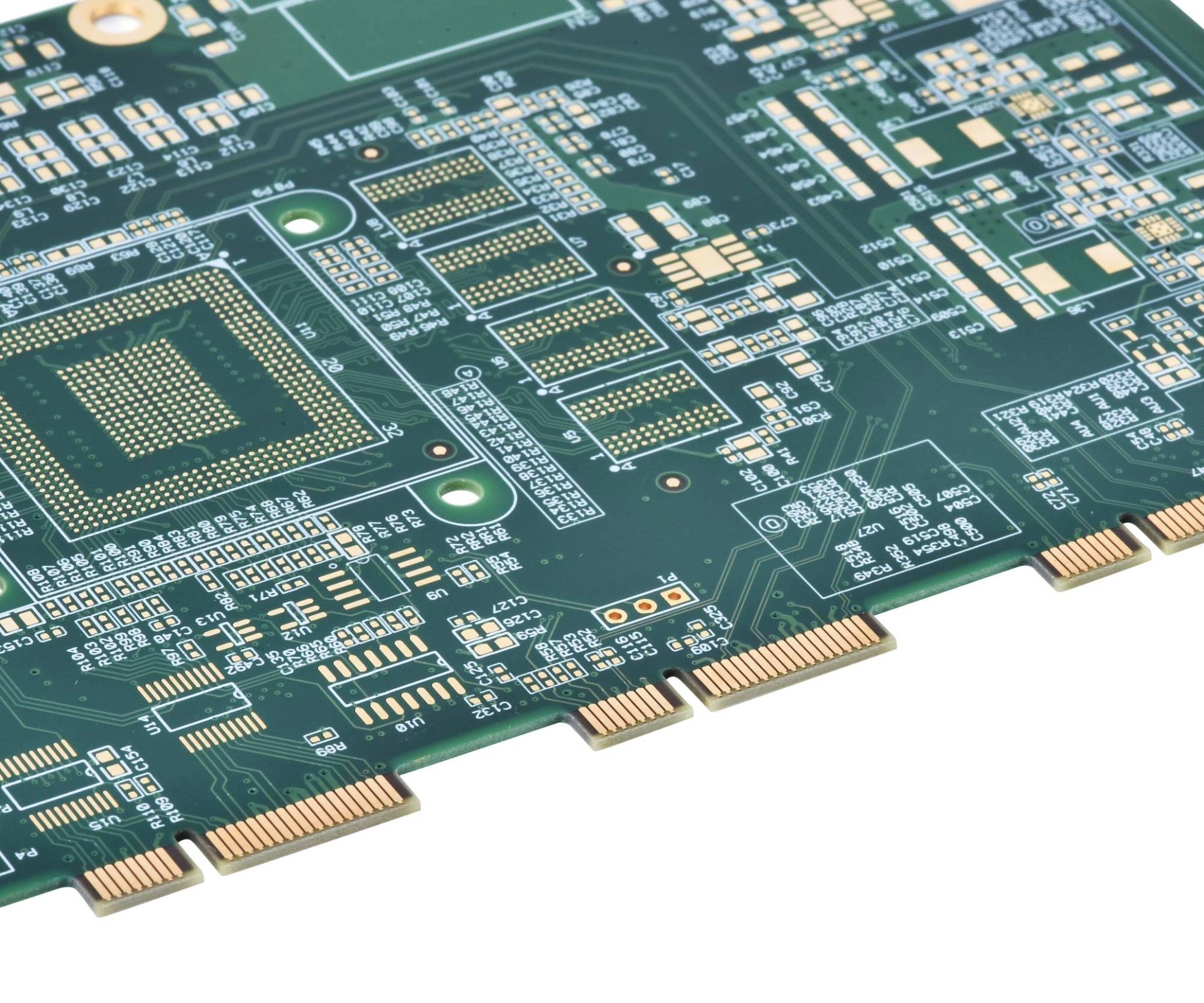

Multilayer PCB

We use high TG, laminates to guarantee dimensional stability and long-term vibration resistance for industrial and defense applications.

Consult our Application Engineers (AEs)



What is a Multilayer PCB?

General-purpose workhorse for control, digital and mixed-signal designs, typically 4–12 layers.

  1. Qualification, Materials & Compliance Overview
  2. The Advantage of Multilayer PCB

Qualification, Materials & Compliance Overview

Acceptance Standards

Built and inspected per IPC-6012 Class 2 / Class 3 and IPC-A-600.


Material Standards

FR-4 or mid-loss FR-4 materials, with Tg/Td selected to match the product temperature profile; UL-recognized.


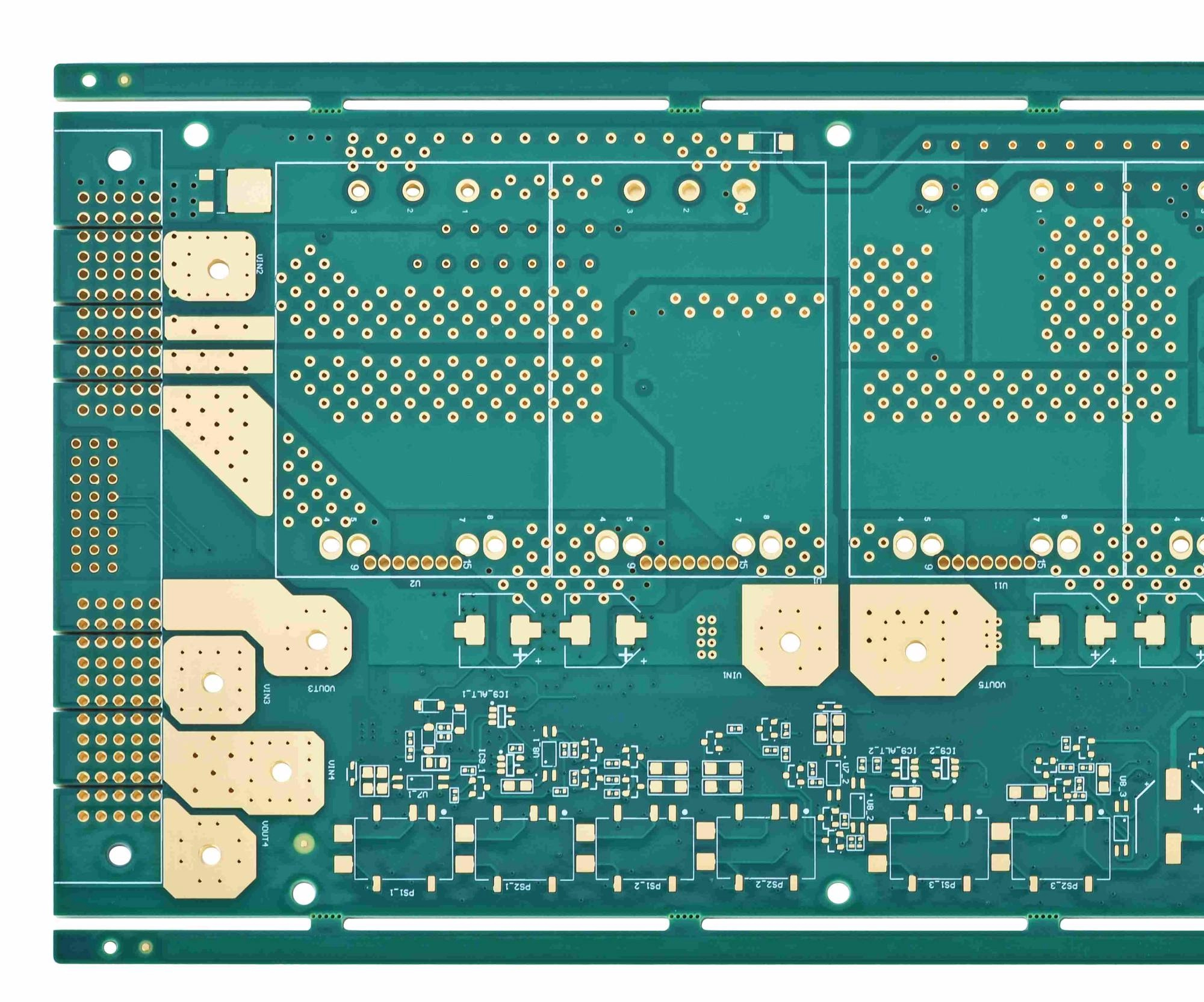

Structure Overview

Multiple copper layers with buried and through vias, defined prepreg/core stack-up, and dedicated power/ground planes.


Compliance

Supports RoHS / REACH, UL marking, and creepage/clearance rules aligned with relevant IEC/UL safety standards.


KnownPCB Prototyping & Mass Production Service Ask for Layout Optimization Guideline

The Advantage of Multilayer PCB (Printed Circuit Board)

Mature and predictable for most control/digital boards when standard DFM is followed.

  • 01 Balanced stack-up reduces warpage risk;
  • 02 Reasonable via aspect ratio survives typical thermal cycling;
  • 03 Main failure modes include CAF or delamination if spacing and resin rules are ignored.

Baseline cost option for 4–12 layer designs.

  • 01 Uses standard FR-4 materials and common copper weights;
  • 02 Relatively low NRE and setup cost compared to advanced stack-ups;
  • 03 Scales efficiently from prototypes to mass production.


Balanced electrical behaviour for common high-speed and mixed-signal designs.

  • 01 Power and ground planes provide stable return paths;
  • 02 Basic impedance control supports DDR, LVDS, and mid-speed buses;
  • 03 Additional layers can be added to meet EMI/EMC and routing requirements.

KnownPCB Prototyping & Mass Production Service Ask for Layout Optimization Guideline

Multilayer PCB: Maximize Complexity,Minimize NRE.

Ensuring superior structural integrity


Multilayer PCB fabrication requires extreme control over structural integrity.

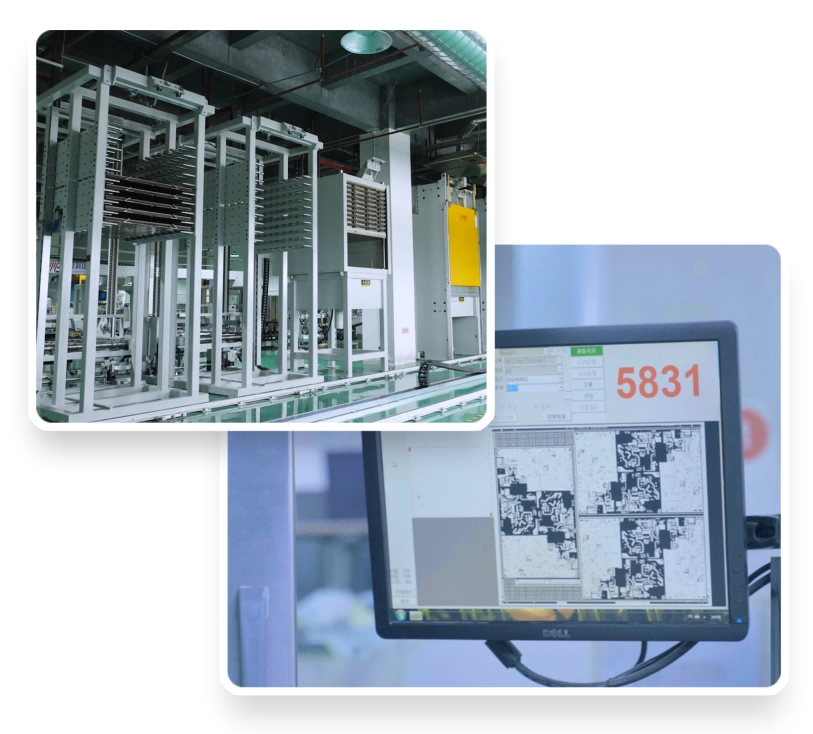

We implement Inner Layer AOI for zero-defect verification before lamination. Core steps include Vacuum Lamination to ensure void-free layer bonding, followed by precise Through-Hole Drilling and robust Plating to guarantee reliable inter-layerconductivity and high Aspect Ratio support.




The overview page compares standard 4–32 layer configurations. Higher-layer or special-material designs need a project-specific stackup and manufacturability review before their limits and lead time are confirmed.


KnownPCB Profile Ask for DFM Guideline



Multilayer PCB
  1. 01Multilayer PCB Layer Count / Complexity Mapping Matrix

Parameter BASIC (4–6 Layers) ADVANCED (8–12 Layers) HIGH-END (14–24+ Layers) Complexity Trend Classification Logic Typical Use Case
Layer Count 4–6 Layers 8–12 Layers 14–24+ Layers (incl. backplane / complex system boards) ↑ More layers → ↑ Complexity Layer Count / Stack-up Quick structural assessment for engineers
Application Positioning General control boards High-speed signal + control hybrid boards Core logic boards / Backplanes / Server motherboards ↑ System importance Application / Architecture Project tiering & complexity
Base Material Standard FR-4 High-Tg FR-4 / Partial low-loss laminates High-Tg / Low-loss (e.g., Megtron/Rogers hybrid) ↑ Performance requirements Material / Process Signal integrity / thermal performance
Typical Stack-up 1–2 power planes + signal layers Multiple power planes + high-speed differential layers Multi-plane + high-speed diff pairs + shielding layers ↑ Finer stack-up planning Layer Structure Designer stack-up planning
Surface Finish HASL / OSP ENIG / OSP ENIG / ENEPIG / Selective plating ↑ HDI-friendly finishes Material / Process BGA/QFN solder reliability
Finished Board Thickness 0.2–1.6 mm 0.4–2.0 mm 1.6–3.0 mm (incl. backplane options) ↑ Thickness & rigidity Structure / Mechanical Connector engagement / structural stiffness
Min. Trace / Space 0.075 mm 0.075 mm 0.05 mm or smaller (2 mil class) ↑ Tighter routing density Material / Process High-density routing
Mechanical Drill Size 0.15 mm 0.15 mm 0.125–0.15 mm ↓ Drill size Stack-up / Via Design Via / connector compatibility
Impedance Control Partial critical signals Full critical high-speed channels Full-board impedance control incl. diff pairs & backplane channels ↑ More impedance-controlled lines Functional / Performance High-speed interface planning
Supported Data Rates ≤1–2 Gbps ≤5–10 Gbps 10–25+ Gbps (differential) ↑ Higher rate capability Functional / Performance Protocol selection (PCIe / USB / SERDES)
Operating Temp Range 0–85 °C –20 to 105 °C –40 to 125 °C ↑ Environmental robustness Functional / Performance Industrial / automotive
Reliability Standards IPC-6012 Class 2 Class 2 / Class 3 Class 3 / Special certifications ↑ Certification level Functional / Performance Quality grade alignment
Service Tier Multilayer BASIC Multilayer ADV Multilayer PRO ↑ Engineering support required Tier / Capability Procurement & engineering decision
Standard Lead Time 7–10 days 10–15 days 15–20+ days ↑ Lead-time vs. layer count Schedule / Planning Project scheduling
Blind / Buried Vias None or minimal Single-direction buried vias Multi-stage blind/buried vias + local HDI ↑ Via structure complexity Material / Process Works with HDI / fine-pitch
Backdrilling Optional Standard for high-speed links Extensive backdrilling + long-reach diff-pair optimization ↑ SI optimization needed Functional / Performance Stub removal / eye-diagram optimization

Get a FREE DFM Review on Your Design (24-Hour Feedback)

Parameter ranges are engineering references. Confirm the applicable material, layer count, impedance and manufacturing limits for your order during DFM review.
