A quick reference for via protection structures. Images are placeholders—replace with your uploaded assets.
| Via Type | Definition | Image |
|---|---|---|

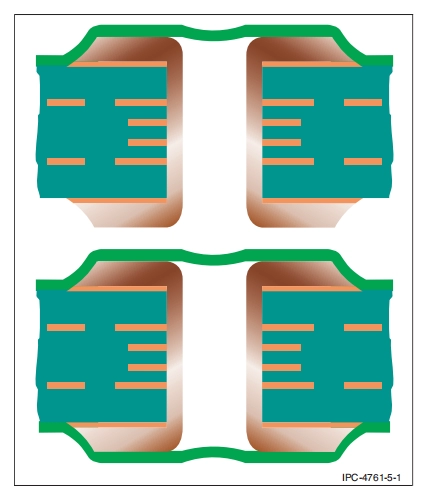

| Tented Via (Type I Via) | A via with a dry film mask material applied bridging over the via wherein no additional materials are in the hole.Single Sided Tented Not Recommended.
|  |

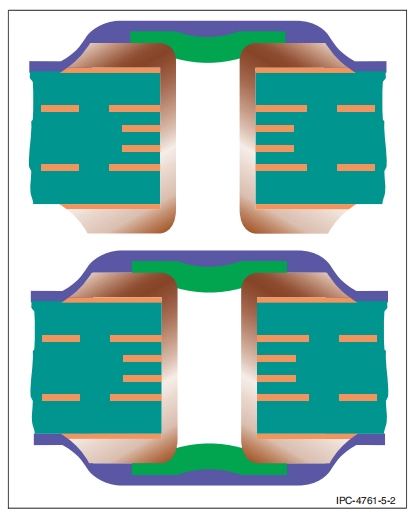

| Tented and Covered Via (Type II Via) | A Type I via with a secondary covering of mask material applied over the tented via.Single Sided Tented and Covered Not Recommended. |  |

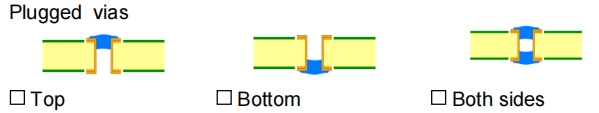

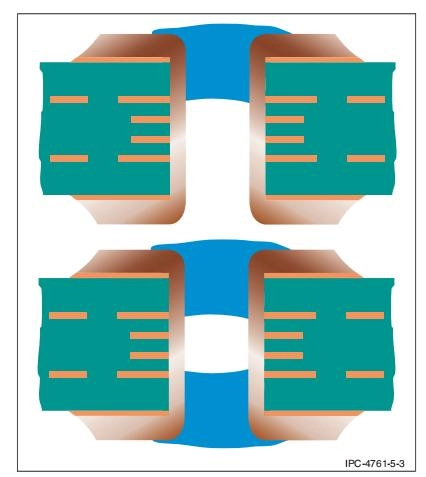

| Plugged Via (Type III Via) | A via with material applied allowing partial penetration into the via. Single Sided Plugged Not Recommended.
|  |

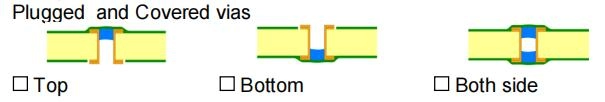

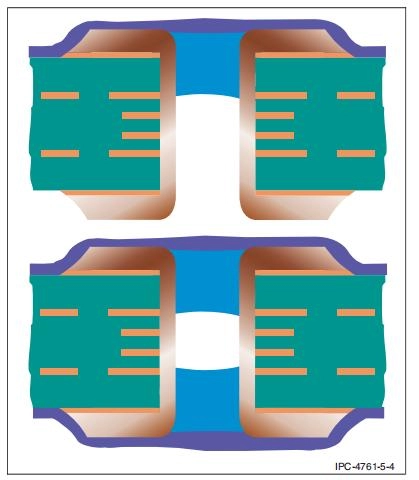

| Plugged and Covered Via (Type IV Via) | A Type III via with a secondary covering of material applied over the via.Single Sided Plugged and Covered Not Recommended.
|  |

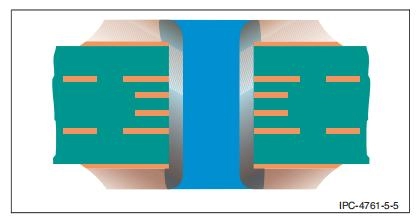

| Filled Via (Type V Via) | A via with material applied into the via targeting a full penetration and encapsulation of the hole.
|  |

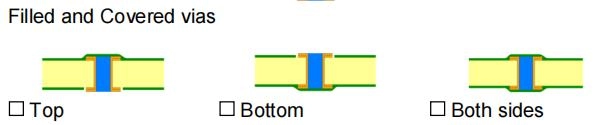

| Filled and Covered Via (Type VI Via) | A Type V via with a secondary covering of material (liquid or dry film soldermask) applied over the via.
|
|

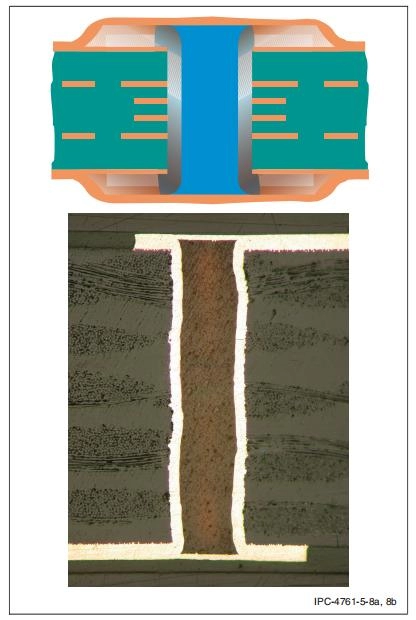

| Filled and Capped Via (Type VII Via) | A Type V via with a secondary metallized coating covering the via. The metallization is on both sides.
|  |
Note: Single-sided tented/plugged variants are generally not recommended for reliability.
