What Is an Embedded Copper coin PCB and When Should You Use It?

At KnownPCB, with plentiful printed circuit board (PCB) manufacturing experience since 2008, we always focus on resolving thermal challenges in high-power and high-density circuit board design. In this article we want to make clear:

• The introduction of copper coin insertion technology for thermally conductive PCB
• Comparisons between embedded copper coin, thermal vias and heatsinks
• Key Applications of copper coin-embedded thermal solutions


What Is an Embedded Copper Block PCB?

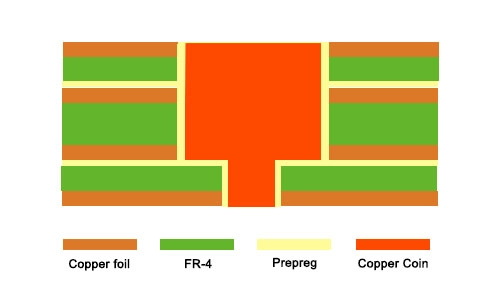

An embedded copper coin PCB (also called copper block PCB or copper inlay PCB) is a circuit board that uses a solid copper insert inside the board to create a more efficient thermal path, allowing heat to be efficiently transferred from high-power components to the rest of the PCB or external cooling structures.

The technology of embedded copper board structure is not a general cooling method. It is a potently approach that is used to handle specific thermal bottlenecks.

Embedded Copper Structure vs Thermal Vias vs Heatsinks

To understand what kind of thermal barriers that a PCB with copper coin insertion is designed to overcome, it is helpful to compare the performance of different thermal managements first (Thermal vias and Heatsinks) under real world design restrictions.

In high-power PCB design, these 3 solutions for thermal management are often used in combination rather than separately. Thermal vias provide the basic heat path through the board, and heatsinks handle the overall system cooling.

However, When Z-axis space is limited and standard paths become inefficient, embedded copper board is becoming a more optimal choice for the following applications.

Applications and Design Considerations for copper coin PCB

High-power and high-density PCBs with embedded copper technology are ideal for industries facing severe thermal challenges and space constraints. Key applications include:

• Power electronics and converters:In devices like Inverters and DC-DC converters, high-power components (such as SiC or GaN MOSFETs)produce localized heat that thermal vias sometimes cannot dissipate effectively itself.
• RF and microwave modules:compact RF PCB designs often restricts the use of external cooling, and makes internal heat transfer more crucial.
• Industrial control systems: industrial PCB designs with high thermal loads and limited space for airflow or heatsinks. In compact and high-density devices, the increase in integration further concentrates heat, and reducing the effectiveness of conventional solutions.
• Automotive electronics: Faced with harsh environments and extreme vibration, automotive systems (like EV traction inverters) require cooling that is both high-performance and good machanical durability.

In these application challenges, the core issue is consistent: concentrated heat builds up at a localized source, and standard cooling techniques are no longer sufficient. Embedded copper coins address this by establishing a more direct and optimized thermal path within the PCB structure.

However, the way that insert copper coin inside PCB also requires careful consideration:

• The technology of embedded copper needs more complex manufacturing process
• It is more costly compared to standard PCBs
• The option of copper coin has tighter circuit board design and process control conditions.

Thus, for lower-power PCB designs, simpler thermal solutions such as thermal vias or heatsinks are usually more practical.

Conclusion

Embedded copper coin PCBs are not a all-purpose heat mitigation technique, but a specialized thermal solution to resolving localized thermal bottlenecks in PCB design.

As shown in context above, embedded copper coin offers a more direct and lower-resistance pathway to extract heat from the source, improving overall thermal performance and reliability. Instead of replacing other borad thermal design, PCBs which have embedded copper sturcture are most superior when combined as part of a complete PCB heat management design, and giving designers more flexibility in selecting the right PCB solution for their ciruit board.
